HDC2460
Availability: In Stock

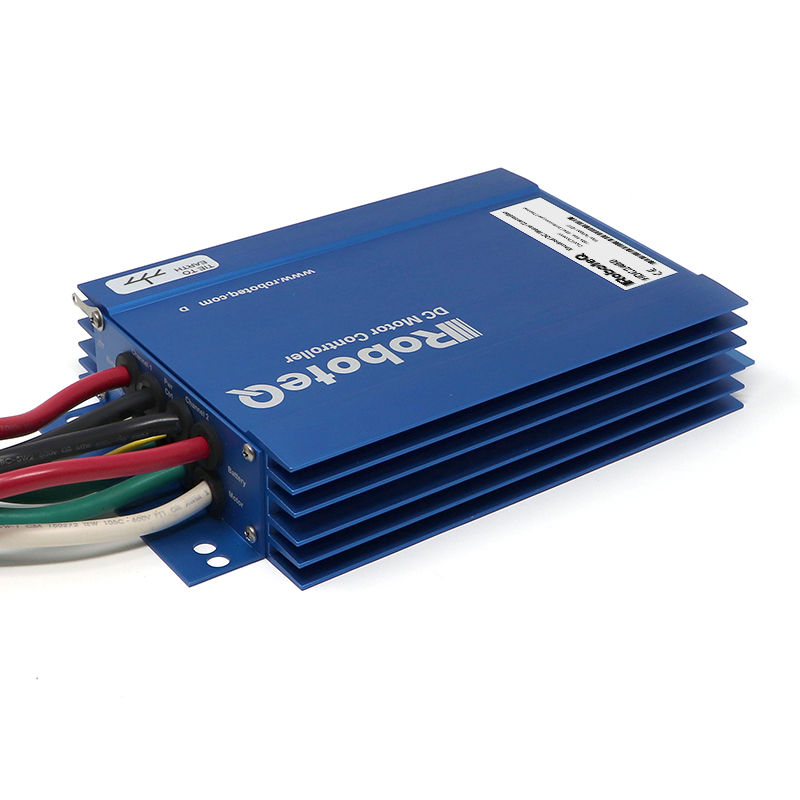

Brushed DC Motor Controller, Dual Channel, 2 x 80 A Continuous, 2 x 150 A Peak (30 s), 60V, USB, CAN, 19 Dig/Ana IO, Heatsink enclosure
$760.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  HDC24xx Datasheet | v.1.1, July 31, 2019 | 679.2 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 | v.2.1, Mar 22, 2022 | 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  HDC24XX Firmware v2.1d | v.2.1d, June 13, 2024 | 221.28 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  HDC2x-step3d | 29.19 MB |
Family
Motor Type
Brushed DC
Power
Max Voltage
60
Design Generation
Gen3
Number of Channels
2
Max Amps per Channel
150
Continuous Amps per Channel
80
Power Connections
Wires
Communication
RS232
Yes
RS485
No
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
11
Max Digital Inputs
19
Max Digital Outputs
8
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Heatsink Extrusion
Dimensions
(228mm x 140mm x 40mm)
Weight
1500g
