FDCG3260T
Availability: In Stock

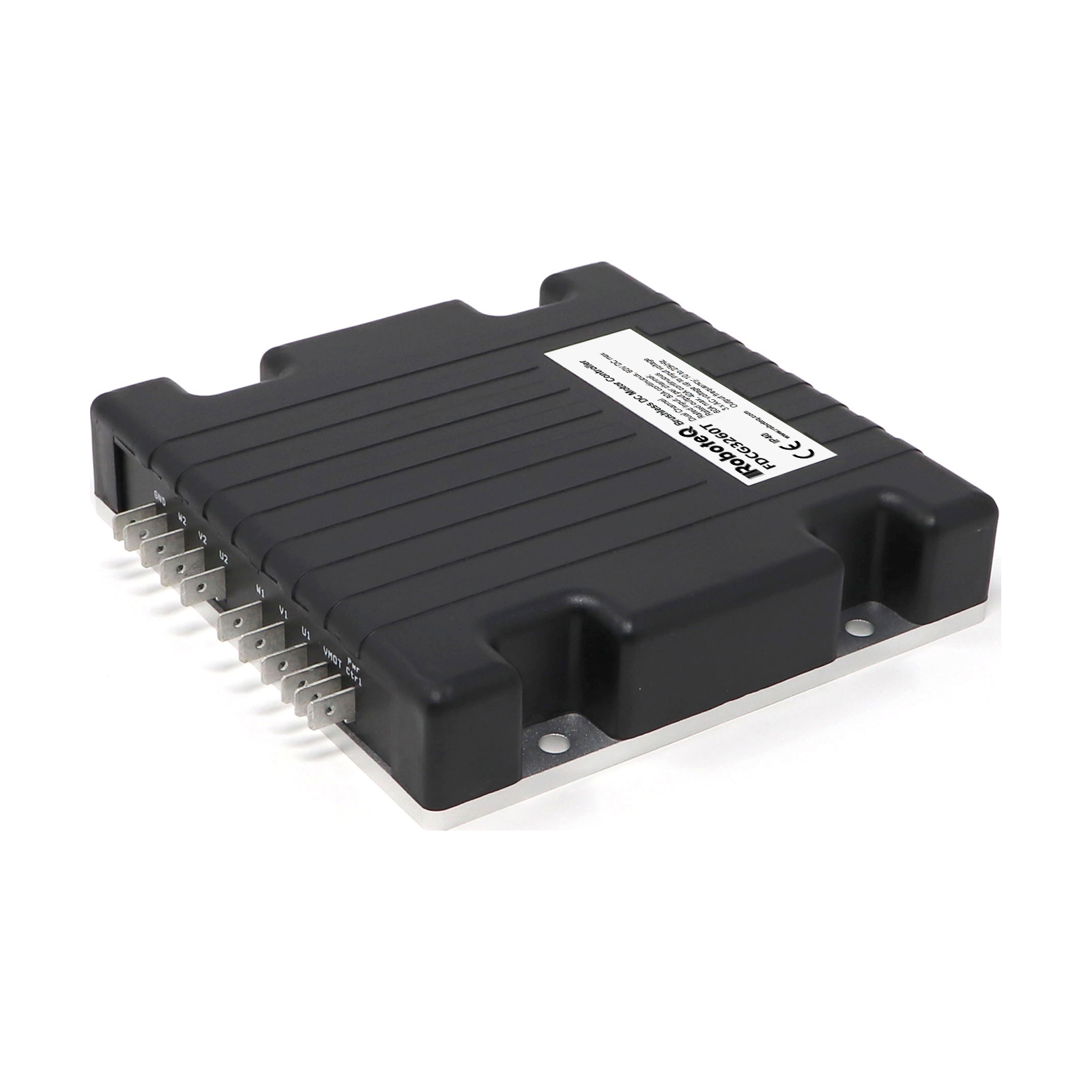

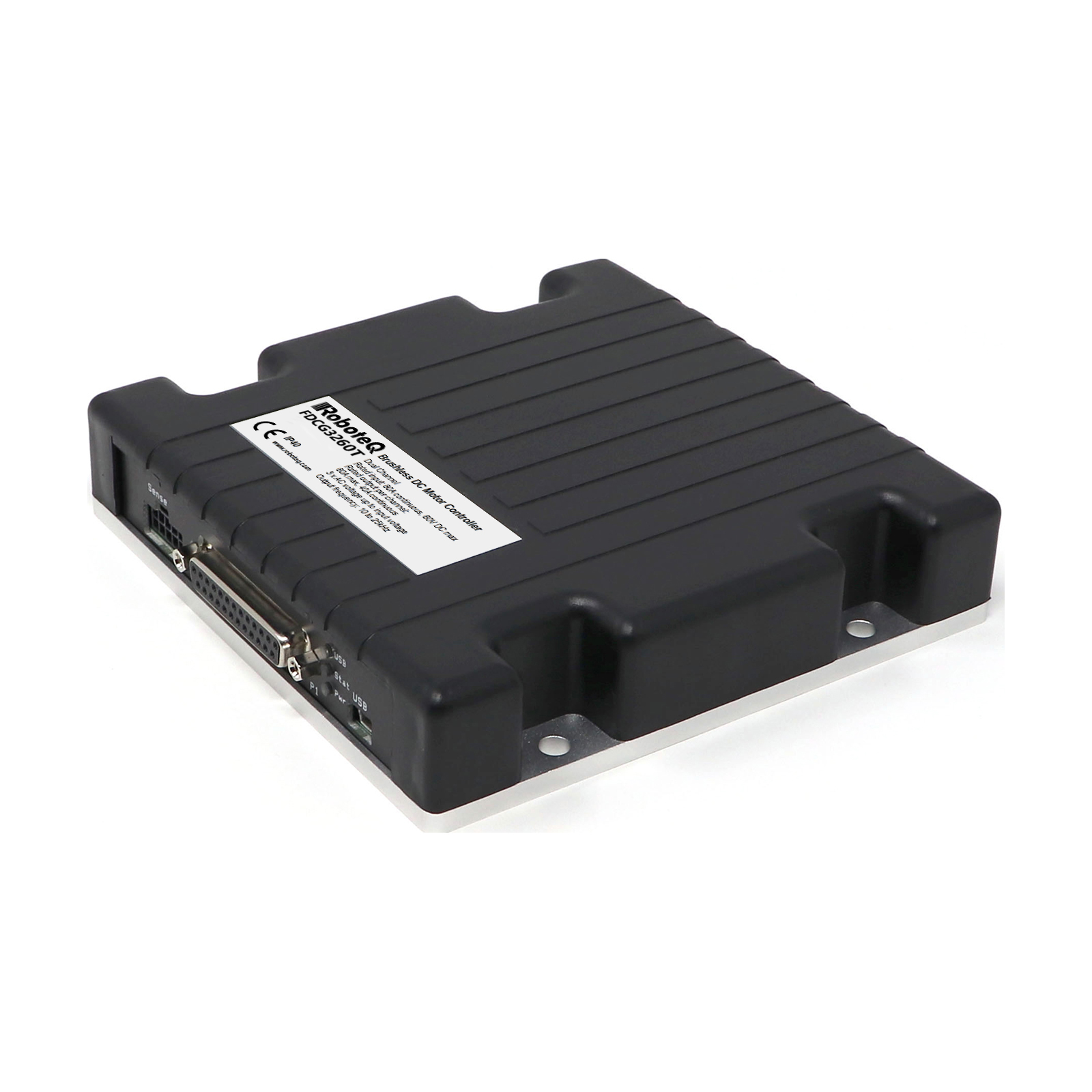

RoboG4TM Brushed DC Motor Controller, Triple Channel, 3 x 40 A Continuous, 3 x 60 A Peak (30 s), 60V, USB, CAN, 14 Dig/Ana IO, Cooling plate with ABS cover, STO PLe, Cat3, SIL3
$915.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FDCG3xxx datasheet | v 1.0, Feb 11, 2026 | 812.52 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.2 | v3.2 December 16, 2025 | 13.5 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | STO Certification | September 27, 2024 | 797.03 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ Utility User Manual v3.2 | 5.56 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FDCG3XXX Firmware Update v3.2c | v.3.2c, April 2, 2026 | 318.15 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | FDC3x step3d | 1.51 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ PC Utility v3.3 | v3.3 February 2, 2026 | 62.95 MB |
Family
Motor Type
Brushed DC
Power
Design Generation
Gen4
Max Voltage
60
Number of Channels
3
Max Amps per Channel
60
Continuous Amps per Channel
40
Power Connections
Fast on
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
4
Max Digital Outputs
10
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 140mm x 25mm)
Weight
452g
