D52-Frameless
Availability: In Stock

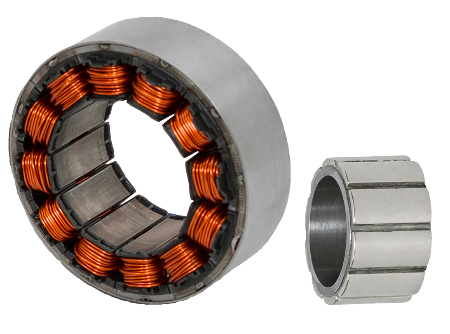

52mm stator size Frameless Motor, 48V, 98W, 1.38 Nm of peak torque.
Note: The product image is for illustrative purposes only. The actual product may differ slightly.
$202.01
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  D-Series Motor Datasheet | 1.86 MB |
Motor
Motor Dimensions (WxHxL mm)
25.47 x 52.1 x 52.1
Max Motor Speed (RPM)
2400
Voltage (Vdc)
48
Nominal Amps (Arms)
3.61
Max Amps (Arms)
12.46
Torque at motor (Nm)
0.39 (Rated)
Number of Pole Pairs
3
Assembly Weight (kg)
0.217
