AGV089A03G-E
Availability: Out Of Stock - 16 to 18 Weeks ARO

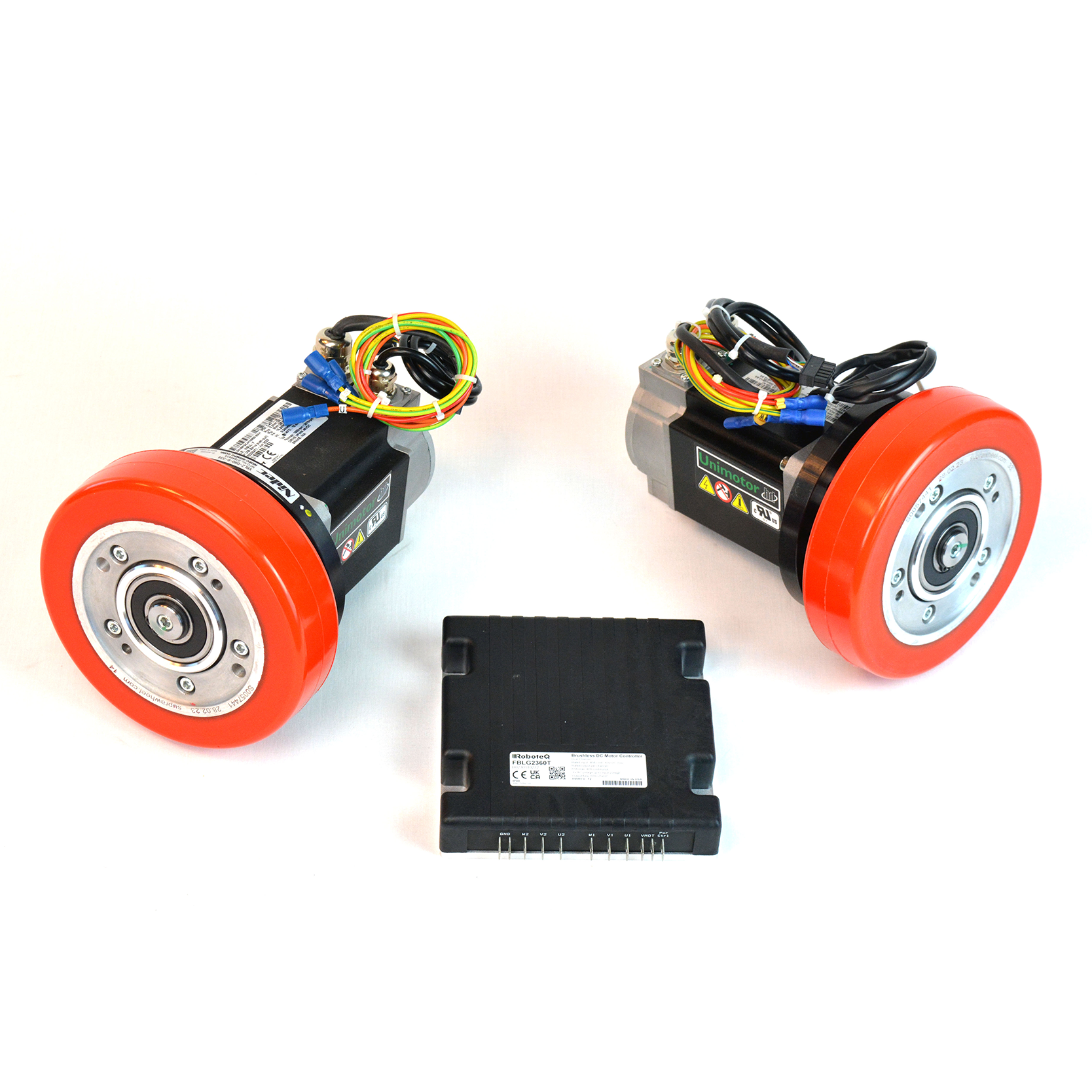

AGV kit including two 89mm 48V Frame Motors, Gearbox, and Wheel Assembly for 1000kg Mobile Robot up to 1500 RPM, without Brake, with FBLG2360TE Ethernet motor controller and Double motor sensor connection cable.
The kit includes:
• 1 x FBLG2360TE drive
• 2 x 089LDA150ROB motors
• 1 x Double motor sensor connection cable
Note: The product image is for illustrative purposes only. The actual product may differ slightly.
Note: Product is EOL – Not recommended for new designs.
$3,200.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FBLG23xx Datasheet | v 1.1, Feb 11, 2026 | 790.3 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | AGV Kit Quick Start Guide | 777.94 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.0c | v3.0c December 16, 2025 | 10.07 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | STO Certification | September 27, 2024 | 797.03 KB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FBL2x-step3d | 1.51 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | 089 Motor 3D Model No Brake | 962.67 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | AGV089A03G profile | 6.77 KB |
Motor
Motor Frame Size (mm)
89
Motor Dimensions (WxHxL mm)
91x91x160.8
Max robot weight (kg)
1000
Brake
No
Max Motor Speed (RPM)
1500
Gear Ratio
9:1
Wheel diameter (mm)
156,4
Max Robot Speed (m/s)
1.36
Voltage (Vdc)
48
Nominal Amps (Arms)
15
Max Amps (Arms)
60
Torque at motor (Nm)
3,2
Output Torque (Nm)
29
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
10
Assembly Weight (kg)
8.1
Communication
Ethernet
