SBLG2360TS
Availability: In Stock

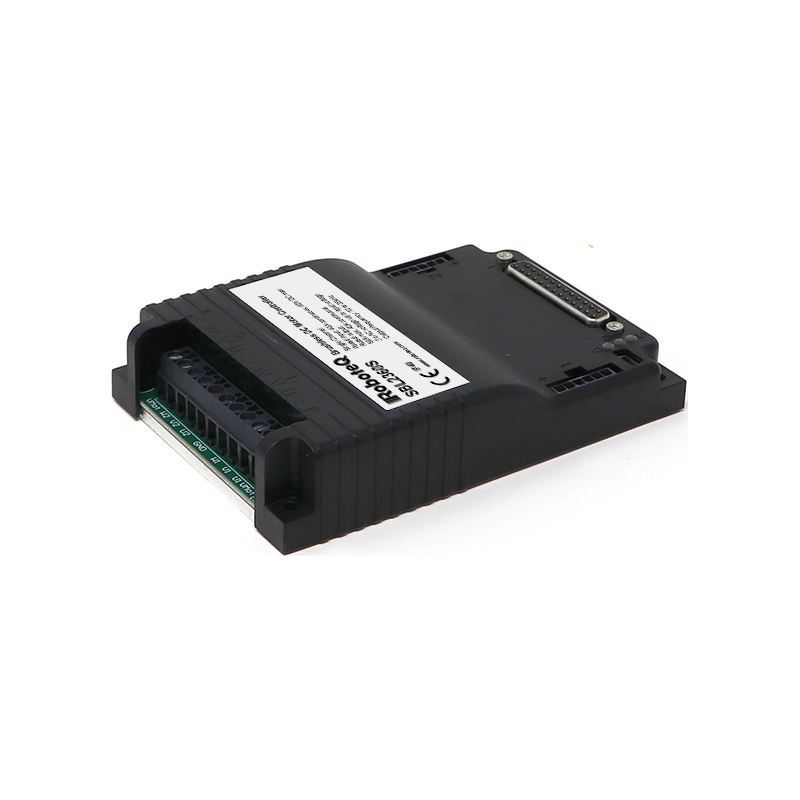

RoboG4® Brushless DC Motor Controller, Single Channel, 1 × 36 A continuous, 1 × 60 A (30 s), 1 × 90 A peak (2 s), 60V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 14 Dig/Ana IO, Conduction Cooling plate, STO PLe, Cat3, SIL3
$655.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SBLG23xx datasheet | v 1.2, Feb 11, 2026 | 978.44 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.0c | v3.0c December 16, 2025 | 10.07 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SBLG2XXXS Firmware v3.0e | v.3.0e, March 17, 2026 | 323.96 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | SBL2x-step3d | 2.75 MB |
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Design Generation
Gen4
Number of Channels
1
Max Amps per Channel
90 (2 s)
Continuous Amps per Channel
32
Power Connections
Screw Terminals
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
No
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
8
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(123 mm x 83mm x 25 mm)
Weight
215g
