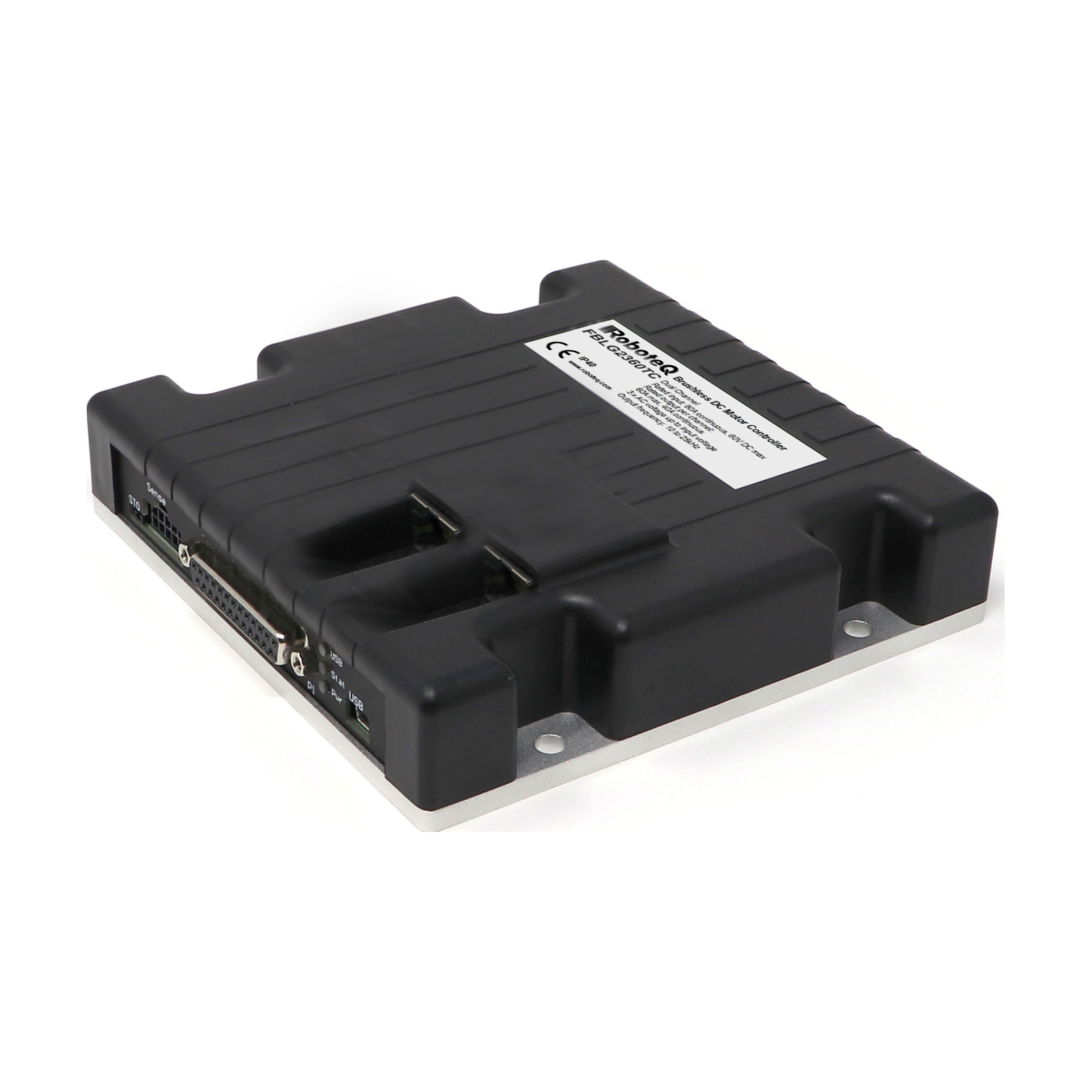

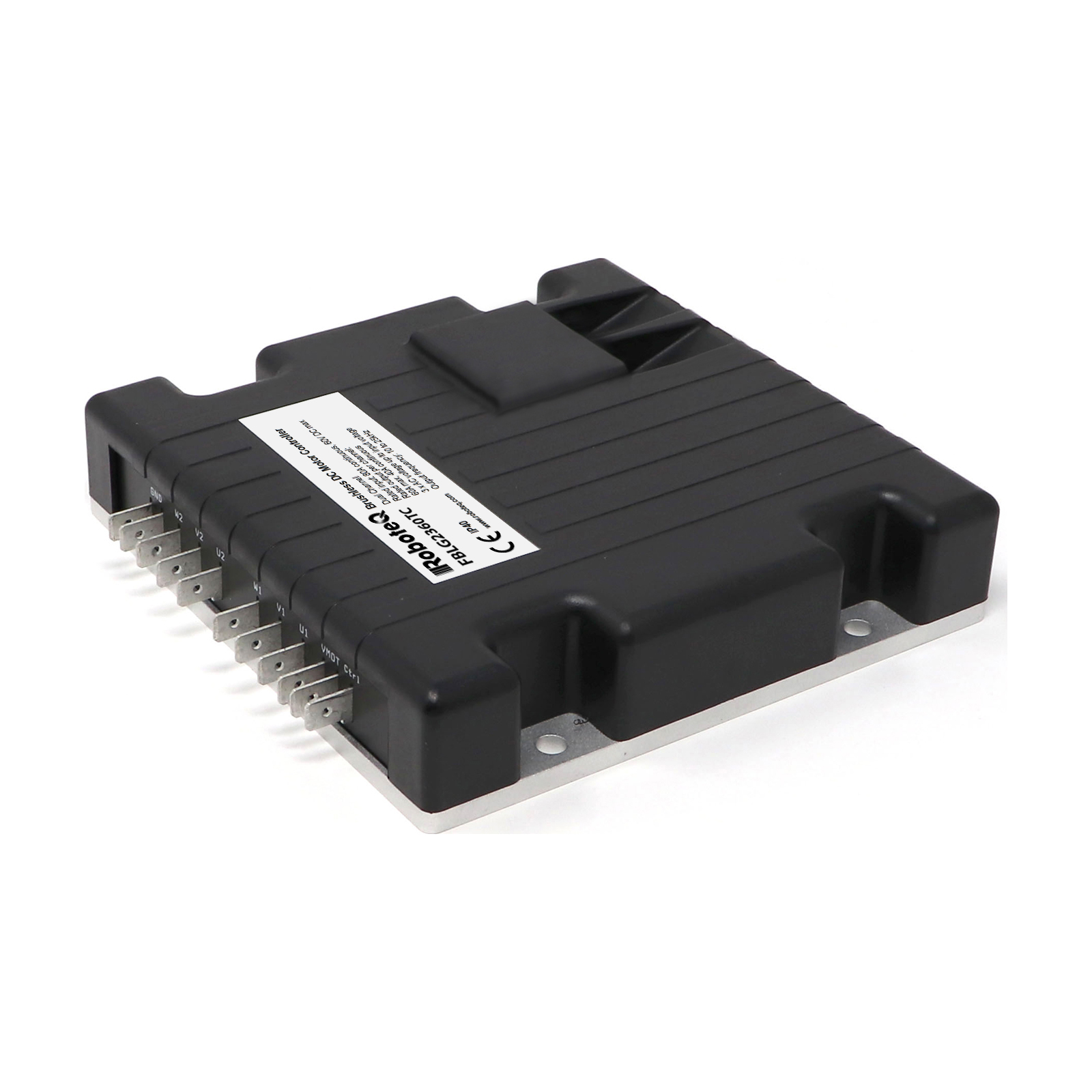

FBLG2360TC
Availability: In Stock
RoboG4® Brushless DC Motor Controller, Dual Channel, 2x 40 A Continuous, 2 x 60 A Peak (30 s), 60 V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 14 Dig/Ana IO, Resolver/SSI, EtherCAT, Conduction Cooling plate, STO PLe, Cat3, SIL3
$1,025.00
Status :
Sampling
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FBLG23xx Datasheet | v 1.1, Feb 11, 2026 | 790.3 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.0c | v3.0c December 16, 2025 | 10.07 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | CAN EtherCAT Networking Manual v3.0d | v3.0d April 21, 2026 | 5.02 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FBLG2XXX Firmware v3.0e | v.3.0e, March 17, 2026 | 338.27 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | FBL2xE-step3d | 2.41 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ PC Utility v3.3 | v3.3 February 2, 2026 | 62.95 MB |
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Design Generation
Gen4
Number of Channels
2
Max Amps per Channel
60
Continuous Amps per Channel
40
Power Connections
Fast on
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
No
Fieldbus
CANOpen
Yes
Modbus
Yes
PROFINET
No
ETHERNET/IP
No
ETHERCAT
Yes
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 140mm x 25mm)
Weight
452g
