GIMG2660TE
Availability: In Stock

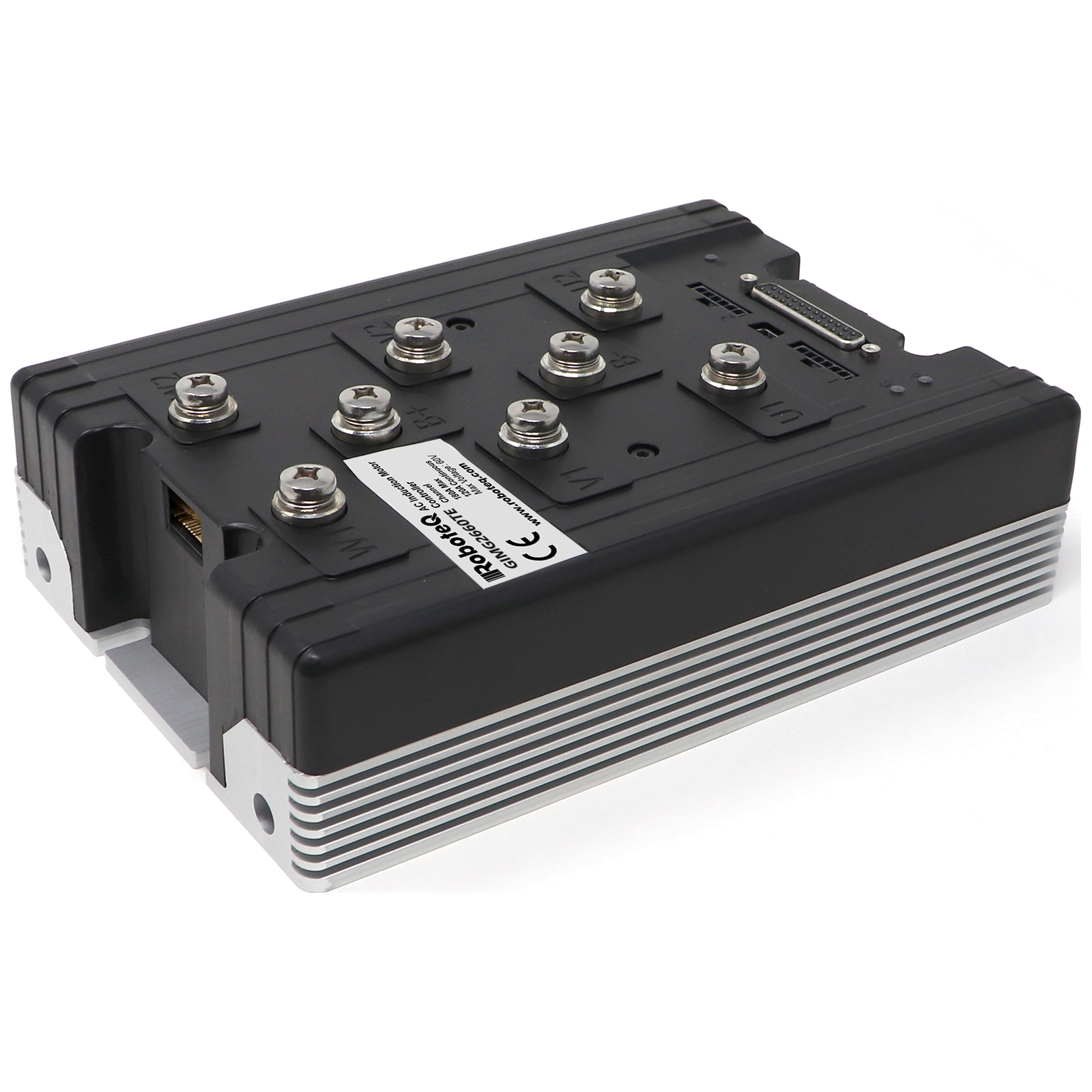

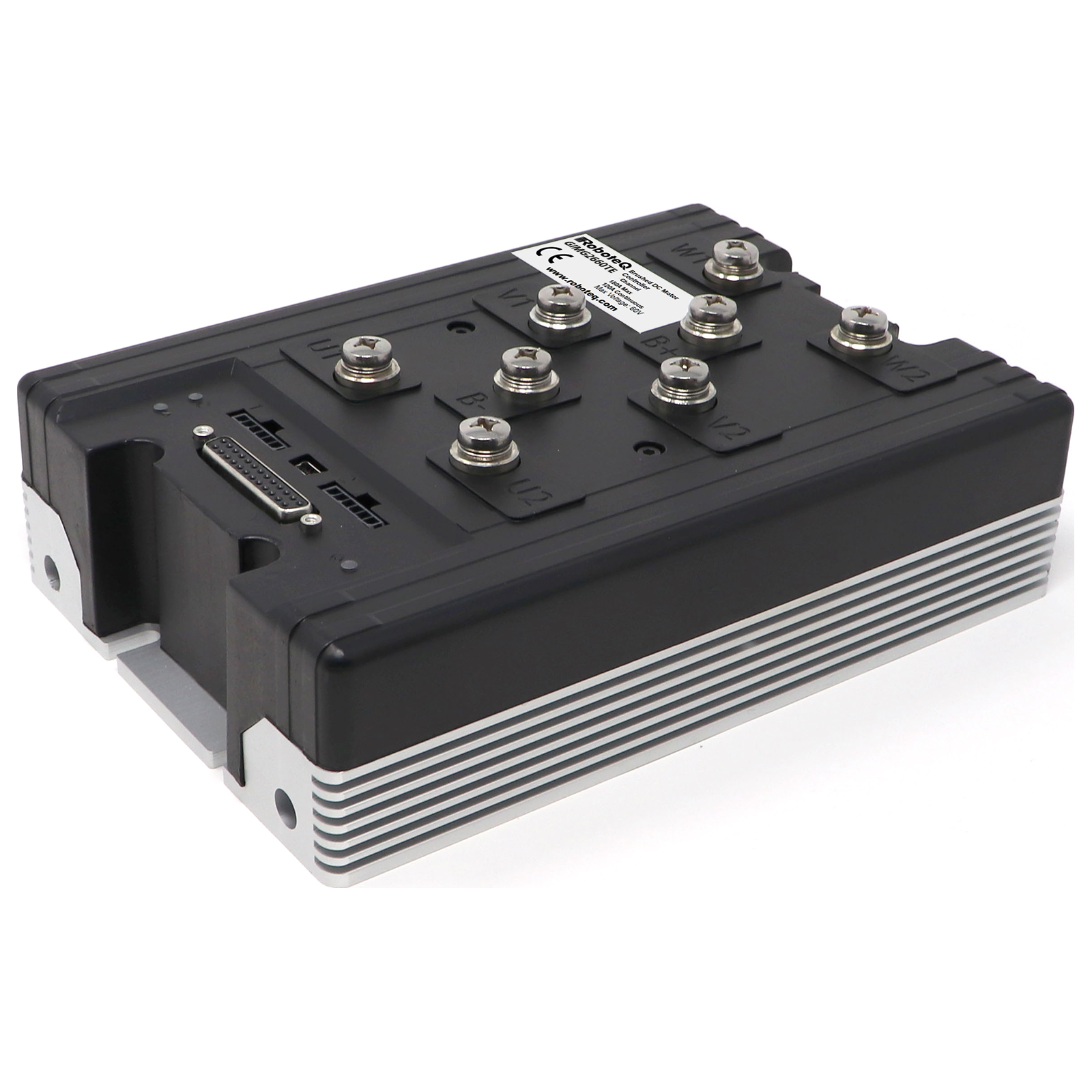

RoboG4TM AC Induction Motor Controller, Dual Channel, 2 x 120 A continuous, 2 x 180 A Peak (30s), 60V, Encoder inputs, USB, CAN, Ethernet
$1,360.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  GIMG26xx datasheet | v 1.0, Feb 11, 2026 | 949.84 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.2 | v3.2 December 16, 2025 | 13.5 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ Utility User Manual v3.2 | 5.56 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  GIMG2XXX Firmware Update v3.2c | v.3.2c, April 2, 2026 | 328.51 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | GIM2x step3d | 5.67 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ PC Utility v3.3 | v3.3 February 2, 2026 | 62.95 MB |
Family
Design Generation
Gen4
Motor Type
AC Induction
Power
Max Voltage
60
Number of Channels
2
Max Amps per Channel
180
Continuous Amps per Channel
120
Power Connections
Power Terminals
Field Oriented Control (FOC)
Yes
Communication
RS232
Yes
RS485
Yes
Ethernet
Yes
Rotor Sensor
SSI
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
8
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(123mm x 83mm x 25mm)
Weight
215g
