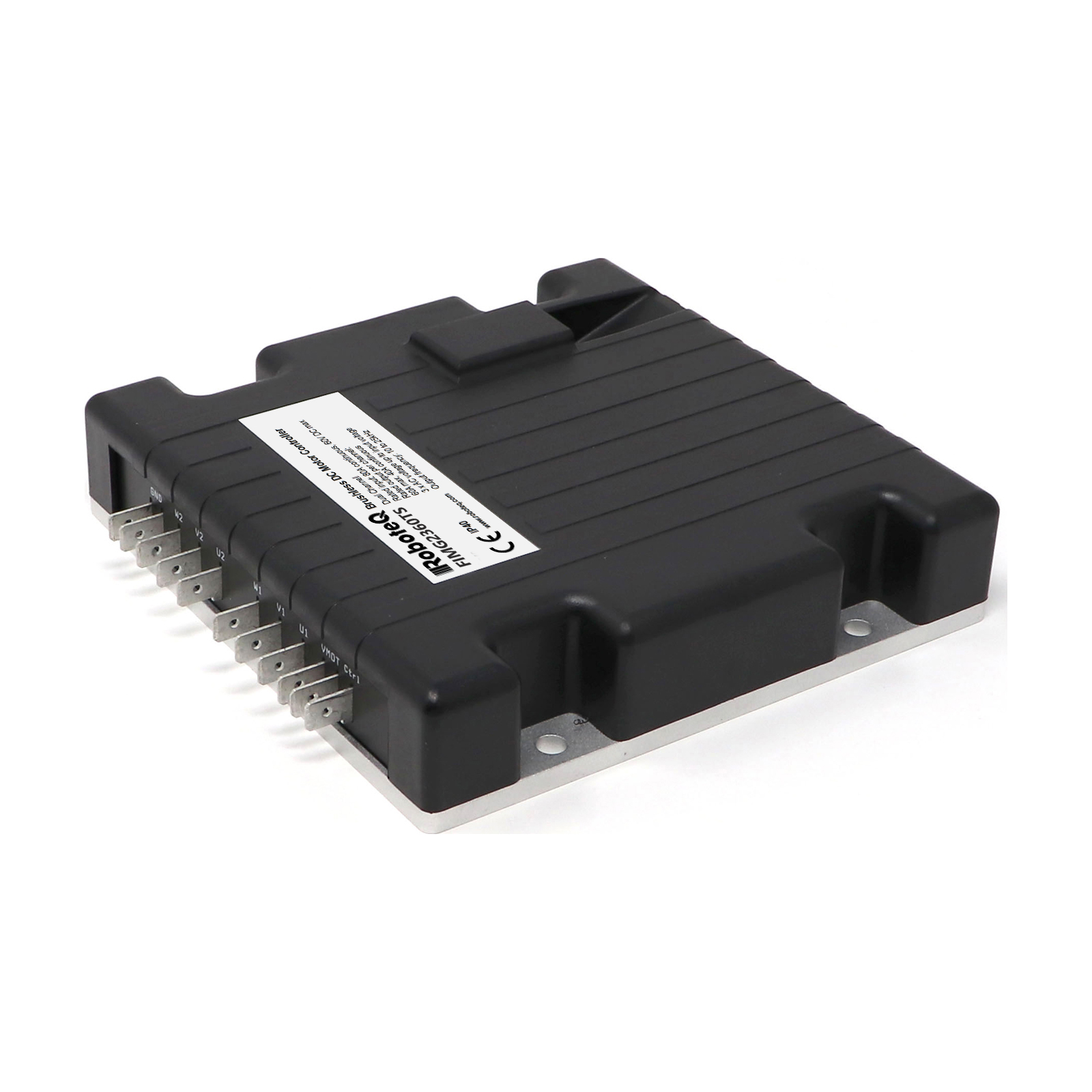

FIMG2360TS
Availability: In Stock
RoboG4TM AC Induction Motor Controller, Single Channel, 1 x 80 A Continuous, 1 x 120 A Peak (30 s), 60V, Encoder input, USB, CAN, 14 Dig/Ana IO, Cooling plate with ABS cover, STO PLe, Cat3, SIL3
$915.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FIMG23xx datasheet | v 1.0, Feb 11, 2026 | 777.49 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.2 | v3.2 December 16, 2025 | 13.5 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | STO Certification | September 27, 2024 | 797.03 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ Utility User Manual v3.2 | 5.56 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FIMG2XXXS Firmware Update v3.2c | v.3.2c, April 2, 2026 | 321.3 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | FIM2x step3d | 1.51 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ PC Utility v3.3 | v3.3 February 2, 2026 | 62.95 MB |
Family
Motor Type
AC Induction
Power
Design Generation
Gen4
Max Voltage
60
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
80
Power Connections
Fast on
Field Oriented Control (FOC)
Yes
Communication
RS232
Yes
RS485
No
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x140mm x 25mm)
Weight
250g
