MGS1600
Availability: In Stock

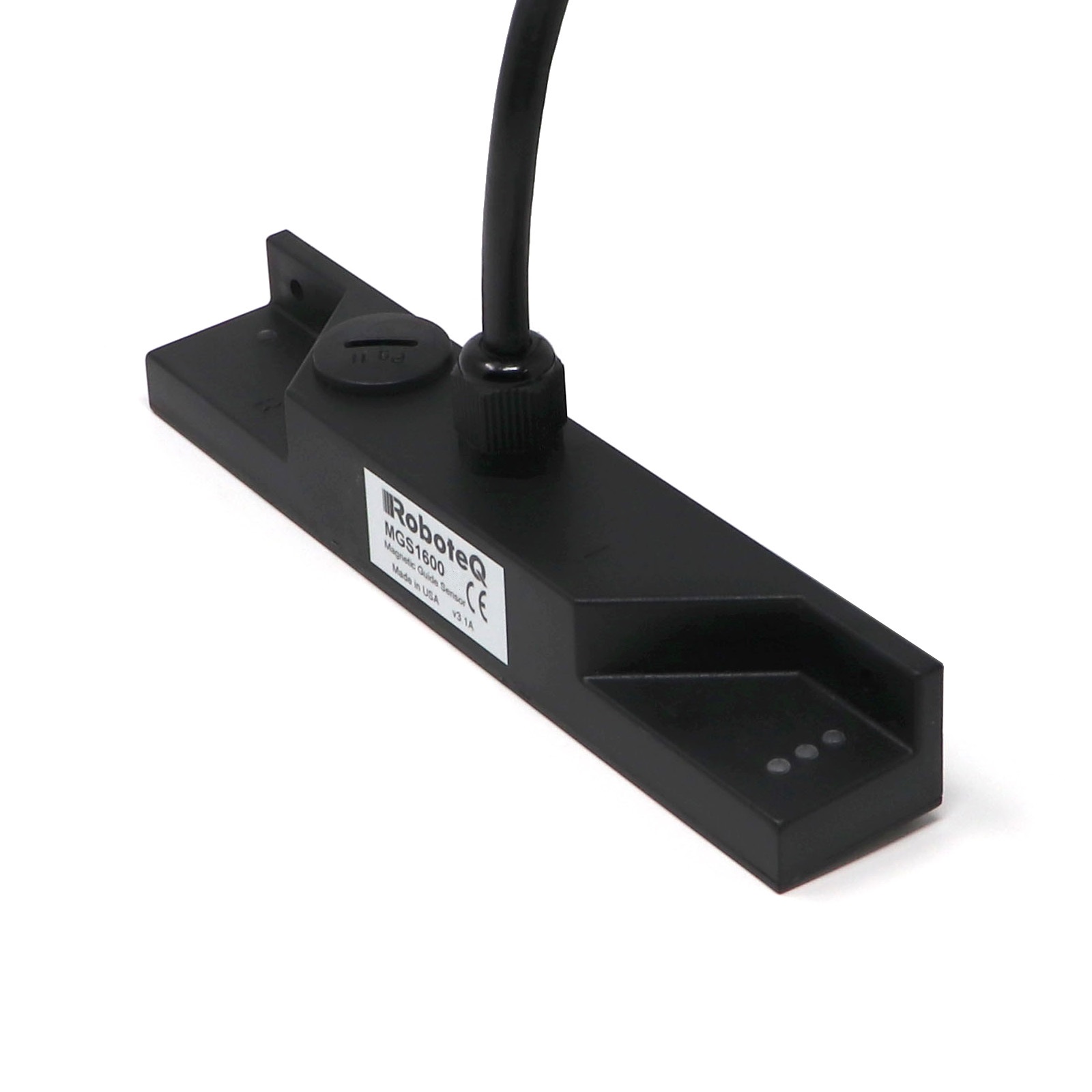

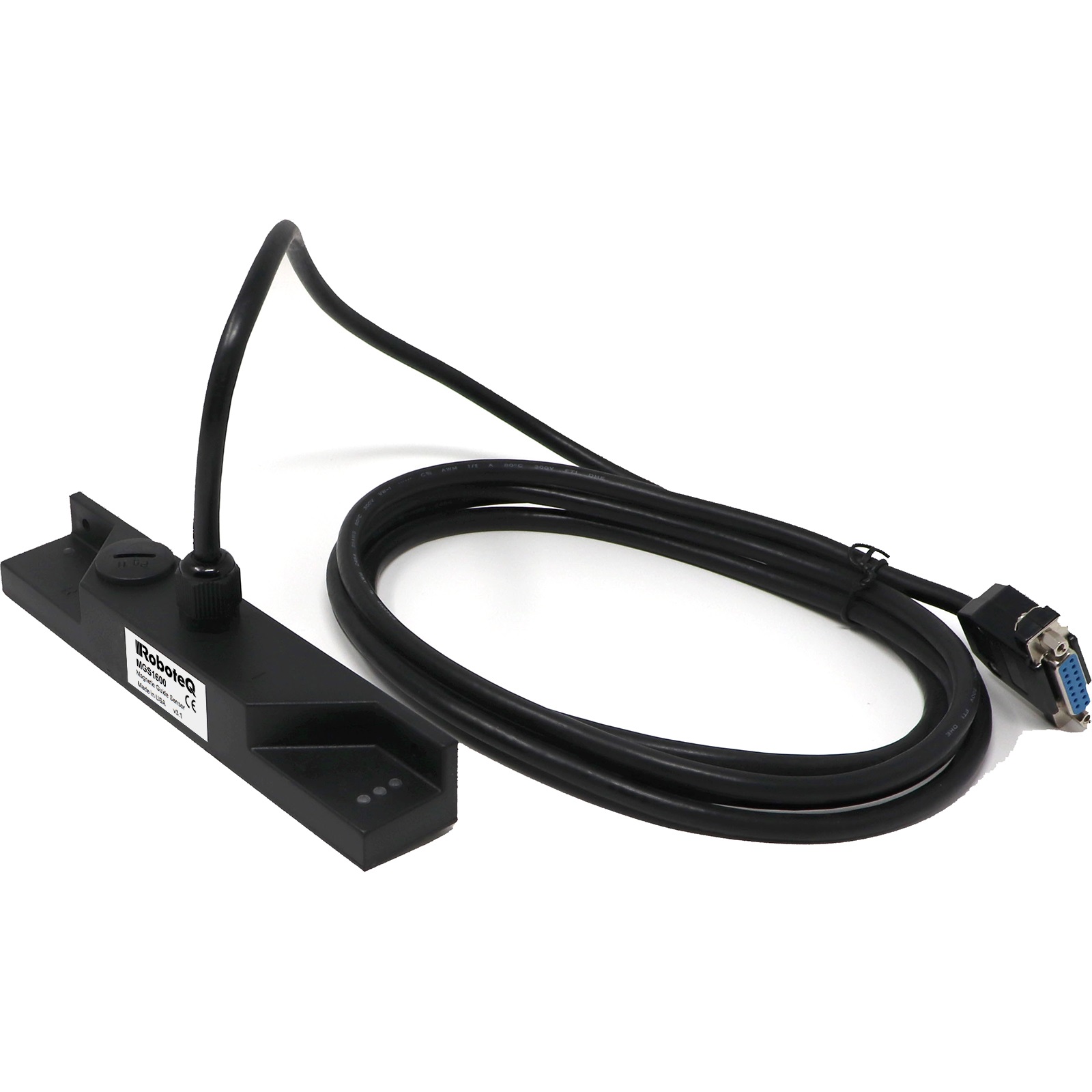

Enclosed IP40, 160 mm wide magnetic track sensor with serial, USB, analog, PWM and CAN output.
$515.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  MGS1600 Datasheet | v.1.5, July 13, 2026 | 1 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.0c | v3.0c December 16, 2025 | 10.07 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  TrackSensor PC Utility | v.1.0, February 04, 2021 | 21.21 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MGS1600 Firmware v3.1 | v3.1, August 10, 2023 | 223.28 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MGS1600-step3d | 198.71 KB |
Sensor
Sensing Width
160
Sensing Height
10-60mm
Communication
RS232
Yes
USB
Yes
Input/Outputs
Analog Out
Yes
PWM Out
Yes
Fork/Markers IO
Yes
Connector
Connector Type
Cable
Number of pins
15
Cable Length
2m Cable
Mechanical
Enclosure
ABS Plastic
Dimensions
(165mm x 30mm x 25mm)
Weight
250g
